Qick View

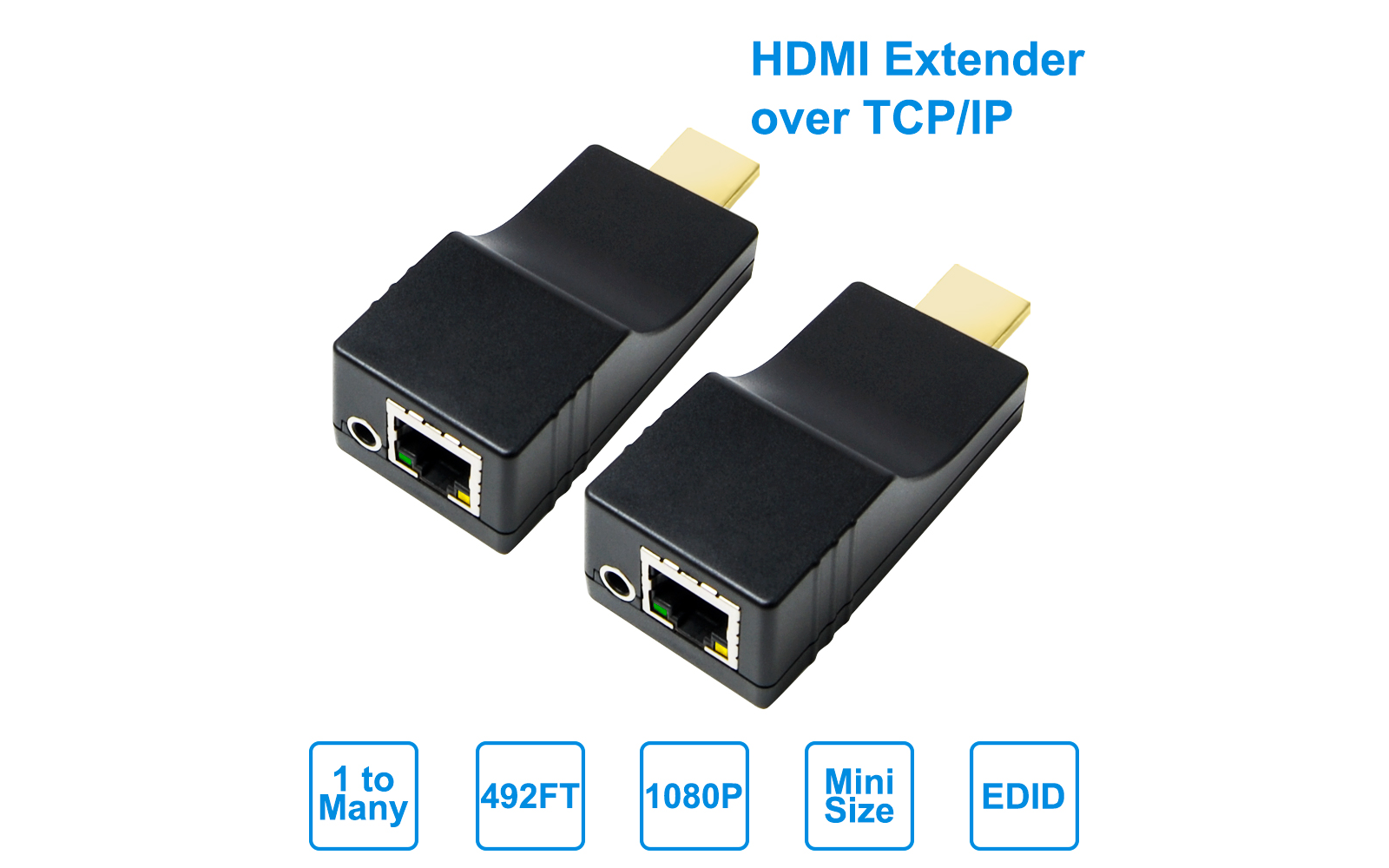

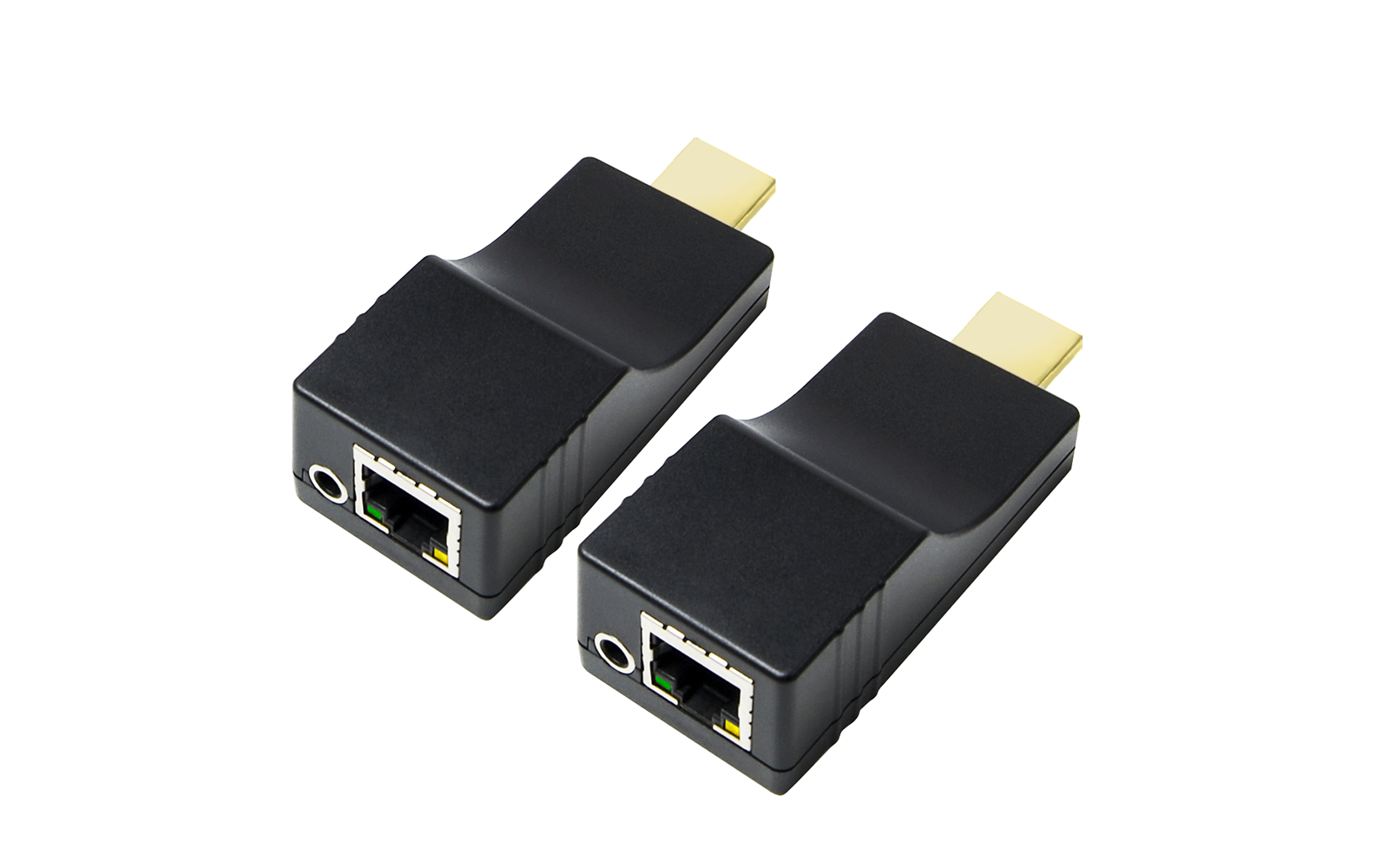

★ HDMI over IP Transmitter: ultra mini and lightweight, with HDMI type-A male connector, the YTD-10 is reasy to plug into the HDMI ports directly. USB-powered.

★ H.265 IP Transmitter Receiver: with H.265 technology, the video transmission is stable in high definition without sacrificing the video quality a bit. up to 1080p@60Hz video passing through in near-real time.

★ Dedicated Lowlatency: video transmission over twisted pair cables in less than 0.08s delay. Transmission range up to 150m in 1080p.

★ 1-to-Many Video Broadcasting: setup with switch or powerline adapter to realize 1-to-many video distribution and transmission. 1 transmitter supports up to 253 receiver.

• Key Features

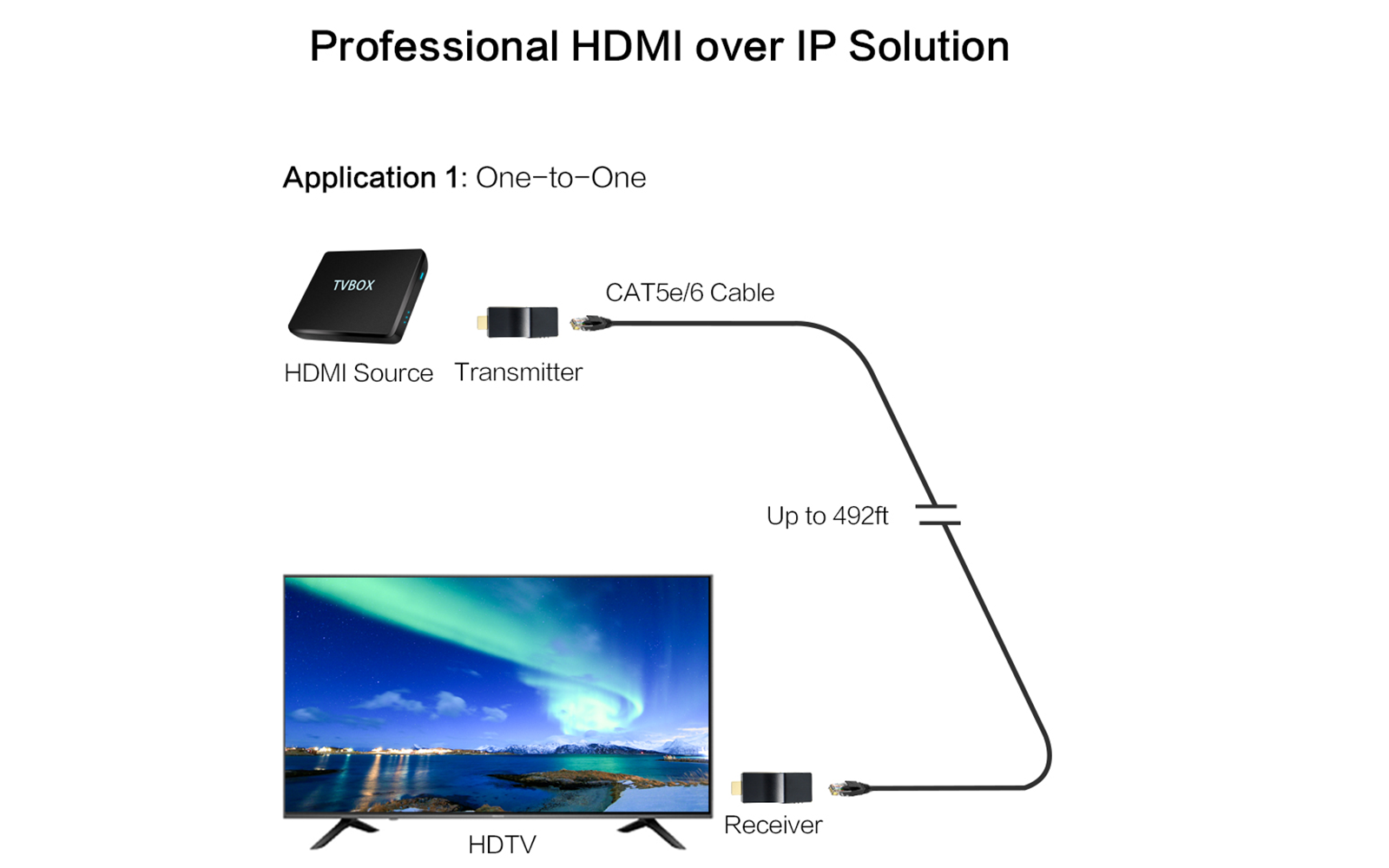

  Save Your Time Simply plug and play, no external driver or software needed. It features a small footprint and an HDMI Type-A male connector that connects directly to your source device and display. It can be powered from any USB connection, no power adapters needed. It is ideally suited for projection system, home A/V systems, digital signage and more.	No Mess-up Installation Compact size that can be hidden on the back of your projector, TV, monitor simply. Connect your source device to the Transmitter, utilize your Ethernet structure to connect the Transmitter to the Receiver, and connect your HDMI display(s) to the Receiver. Then power the extender with any nearby USB connection (e.g. a USB port on your TV box, projector, TV, etc.). Is that easy!	Cost-effective Solution   Streams from a single Transmitter (TX) to up to 253 Receivers (RX). Easy installation. No drilling holes and screws. No proprietary AC power adapters needed. No additional HDMI cables needed. No extra cost. Ultra low power consumption. Uses around 80% LESS power than traditional extenders. Supports 24/7 working.




  Crystal Clear Video Quality This mini extender apply advanced H.265/HEVC technique for image processing. Extending HDMI using H.265 technique can save network resources and provide you with crystal clear video quality. You will be amazed at how this mini extender kit show you the Full HD video with crystal clear quality and superior stability.	Audio Insertion and Extraction Transmitter (TX) - Audio Insertion Supports external 3.5mm audio replacement for HDMI audio input. You can switch between the native HDMI audio and a external 3.5mm audio source input (supports Line in/Mic in) by pressing the 'Reset' button on the TX. Receiver (RX) - Audio Extraction The Receiver can repeat audio embedded in HDMI source and also extract it to a separate 3.5mm audio output, which allows you to connect it to a 3.5mm audio device, such as stereo sound system or desktop speaker for additional audio output.	User-friendly Design Designed to be a simple and reliable HDMI over TCP/IP extender for your everyday use.   HDMI Type-A Male Connector Micro USB Power Port (USB-Powered Only) Ethernet Port 3.5mm ear-jack Indicator Light: Green Light-Power Yellow light-Signal Premium Components and Materials. Size: 3.0×1.2×0.8inches, Weight: 2.2oz (Pair)

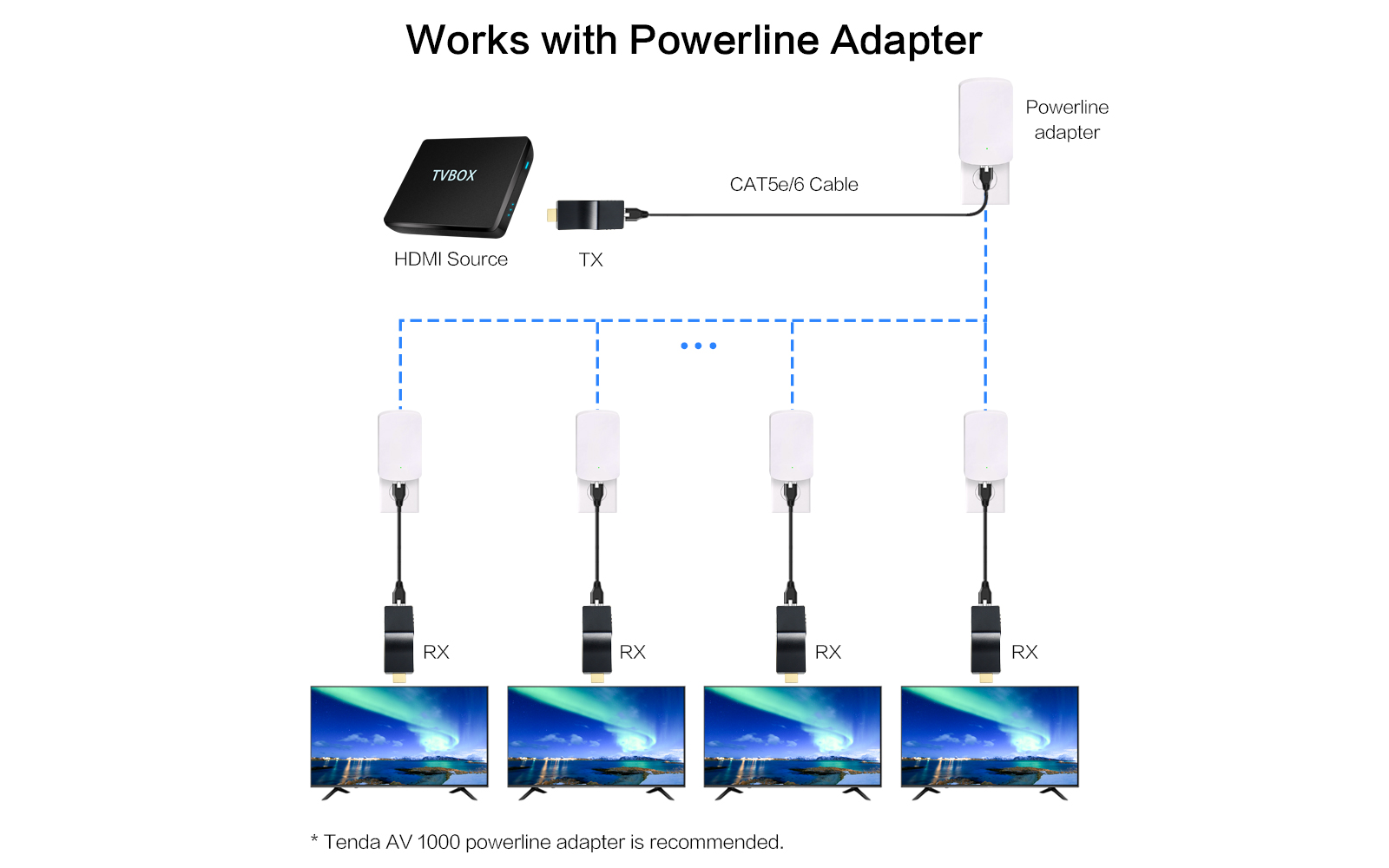

  Works with Powerline Adapter

  This compact extender works with your powerline adapters, this means you can transmit audio/video signals from your HDMI source to your TV, projector, monitor and more without running wires between rooms. Just use the electrical wiring already available in your home, office or presentation space. This will save you money on cabling and wireless installation.



  Specifications

  • Extension Range: Max. 492ft/150m at 1080P (Point-to-Point)
  • Max. Resolution: 1920×1080p@60Hz HDMI 1.3 & HDCP 1.2
  • Audio Supported: HDMI LPCM 2.0 Embeded Audio and External 3.5mm Analog Audio (Line in/Mic in)
  • Works with powerline adapters (Tenda AV1000 is recommended)
  • Wide Compatibility: Compatible with various devices, such as set-top boxes, blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.



  Reminder: Please use an unmanaged, dedicated network switch for network setup with multiple receivers.
